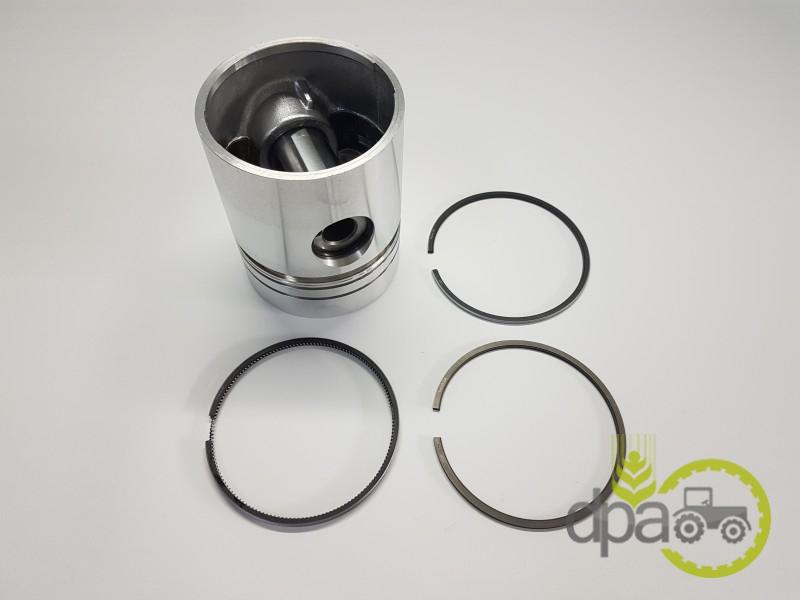

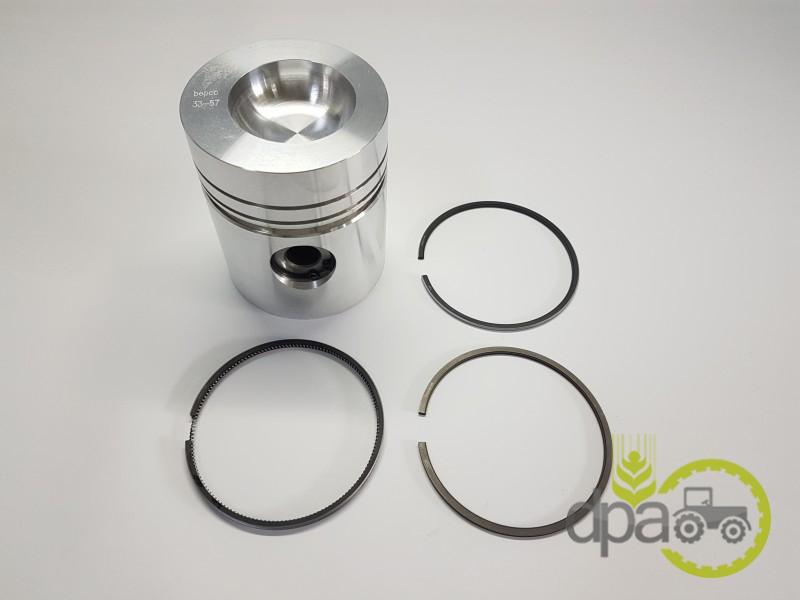

Piston+segmenti motor Massey Ferguson B1226 B1226

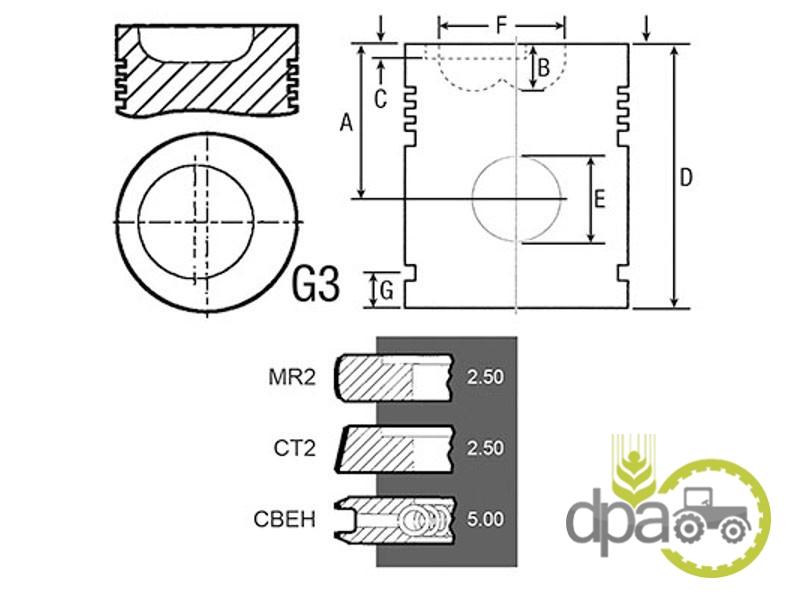

Ø: 101.05 mm
3 segmenti
A: 69.90 mm
B: 20.65 mm
D: 120.70 mm
E: 34.92 mm

Massey Ferguson

Tractor
Serie: 100
194, 194C, 194F, 194S,

Serie: 200
285 (->U839080J 3 ring piston / With flame ring ), 290, 290E (Without flame ring ), 293, 294, 294C, 294S,

Serie: 300
382N (Without flame ring ), 390 (Without flame ring ), 390E (Without flame ring ), 393 (Without flame ring ), 393LX (Without flame ring ), 393S (Without flame ring ), 394AP (Without flame ring ), 394AP(X) (Without flame ring ), 394AQ (Without flame ring ), 394C (Without flame ring ), 394F (Without flame ring ), 394FP (Without flame ring ), 394FP(X) (Without flame ring ), 394FQ (Without flame ring ), 394GE (Without flame ring ), 394GE(X) (Without flame ring ), 394H (Without flame ring ), 394S (Without flame ring ), 394SP (Without flame ring ), 394SP(X) (Without flame ring ), 394SQ (Without flame ring ), 396C (Without flame ring ), 396CF (Without flame ring ), 397 (Without flame ring ),

Serie: 3000
3055 (Without flame ring ), 3060 (Without flame ring ),

Serie: 3200-3300
3235AP(X) (Without flame ring ), 3235FP(X) (Without flame ring ), 3235GE(X) (Without flame ring ), 3235SP(X) (Without flame ring ),

Serie: 500
590 (->U839080J 3 ring piston / With flame ring ),

Serie: 600
690 (->U839080J 3 ring piston / With flame ring ),

Industrial tractor
Serie:
20, 50EX, 50HX, 50HX-S, 50HX-T, 60H-S, 60HX,

Combine-harvester
Serie:
430,

AT4.236 - Perkins
A4.248 - Perkins
