Date tehnice:

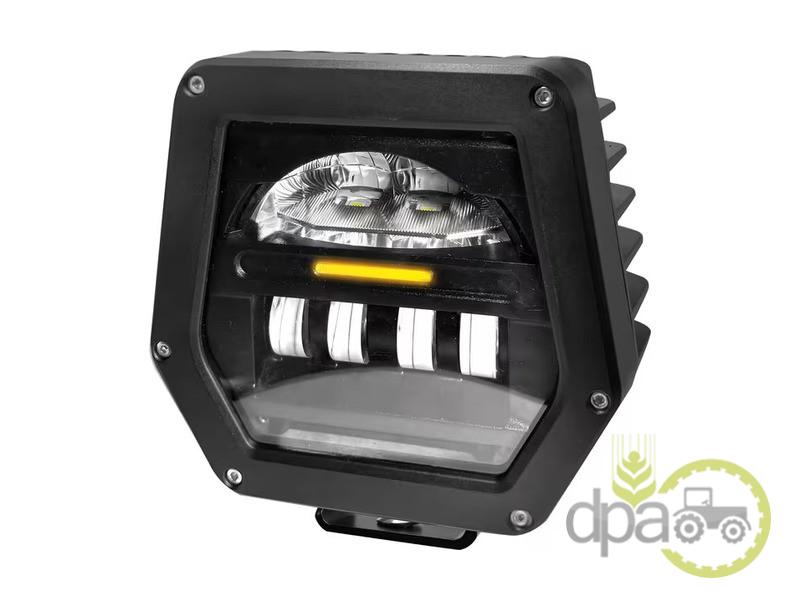

Specificatii Tehnice Far LED
Tehnologie: LED (Configuratie 4 / 6 LED-uri)
Putere: 70 W (Faza lunga) / 40 W (Faza scurta) / 3 W (Pozitie)
Flux luminos: 6000 lm (Maxim) / 3840 lm
Functii: Far vehicul, Faza scurta, Faza lunga, Lumina de zi (DRL), Lampa de pozitie
Temperatura culoare: 6000 °K (Alb rece)
Tensiune: 12 V / 24 V (Interval 10-30 V)
Compatibilitate si Constructie
Tip mufa: Delphi (Conectare rapida)
Material: Carcasa Aluminiu (Negru)
Clasa de izolare: IP69K (Protectie totala la praf si spalare cu presiune)
Standarde: ECE R148, R149, CISPR 25 Class 3 (Interferente radio reduse)
Interval temperatura: -40 °C pana la +80 °C

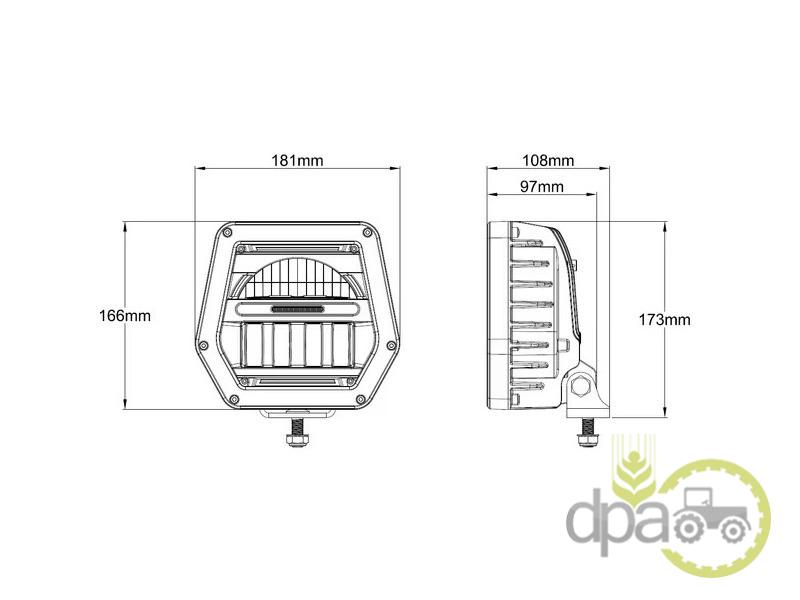

Dimensiuni si Montaj
Forma: Hexagonala
Latime: 181 mm
Inaltime: 173 mm
Adancime: 97 mm
Tip montare: Surub M10 (diametru orificiu 10 mm)
Pozitie: Fata (Stanga / Dreapta)
Lungime cablu: 0,16 m
Se potriveste la:
John Deere
7R 210 Tractor (S.N. 110101-), 7R 230 Tractor (S.N. 110101-), 7R 250 Tractor (S.N. 110101-), 7R 270 Tractor (S.N. 110101-), 7R 290 Tractor (S.N. 110101-), 7R 310 Tractor (S.N. 110101-), 7R 330 Tractor (S.N. 110101-), 7R 350 Tractor, 8R 230 Tractor (S.N. 170001-), 8R 250 Tractor (S.N. 170001-), 8R 280 Tractor (S.N. 170001-), 8R 310 Tractor (S.N. 170001-), 8R 340 Tractor (S.N. 170001-), 8R 370 Tractor (S.N. 170001-), 8R 410 Tractor (S.N. 170001-), 8RT 310 Tractor (S.N. 924001-), 8RT 340 Tractor (S.N. 924001-), 8RT 370 Tractor (S.N. 924001-), 8RT 410 Tractor (S.N. 924001-), 8RX 310 Tractor, 8RX 340 Tractor, 8RX 370 Tractor, 8RX 410 Tractor, 9R 390 Tractor, 9R 440 Tractor, 9R 490 Tractor, 9R 540 and 9R 540 Scraper Tractor, 9R 590 and 9R 590 Scraper Tractor, 9R 640 and 9R 640 Scraper Tractor, 9RT 520 and 9RT 520 Scraper Tractor, 9RX 490 and 9RX 490 Scraper Tractor, 9RX 540 and 9RX 540 Scraper Tractor, 9RX 590 and 9RX 590 Scraper Tractor, 9RX 640 Tractor,
